Lifting Chassis

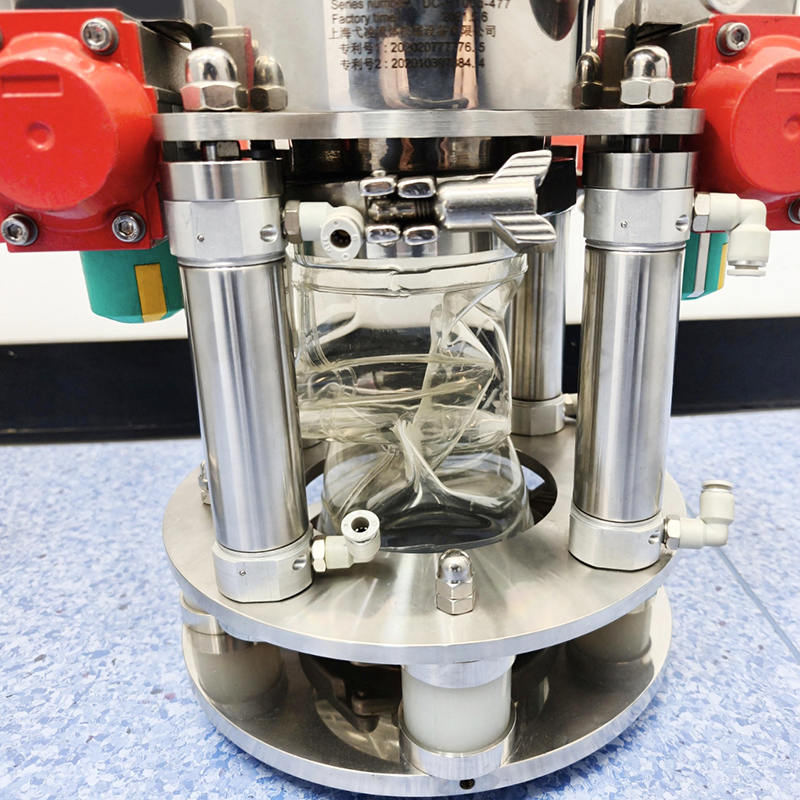

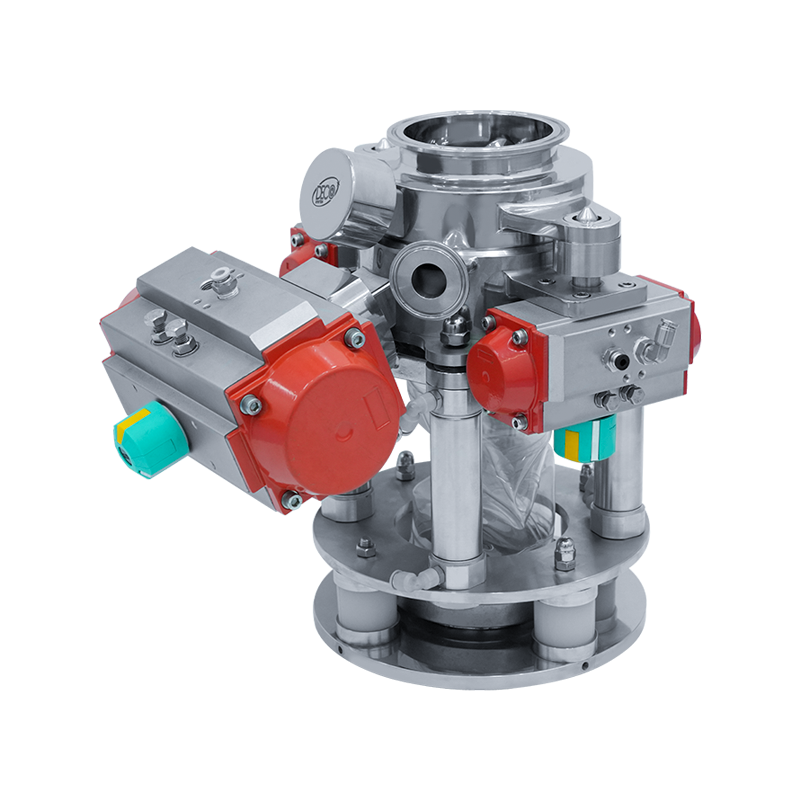

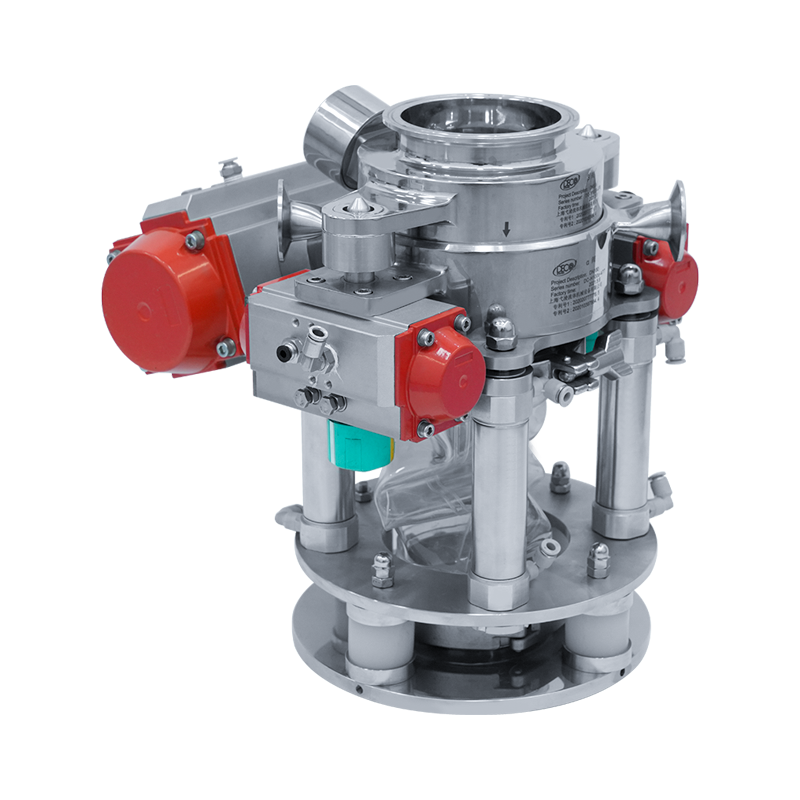

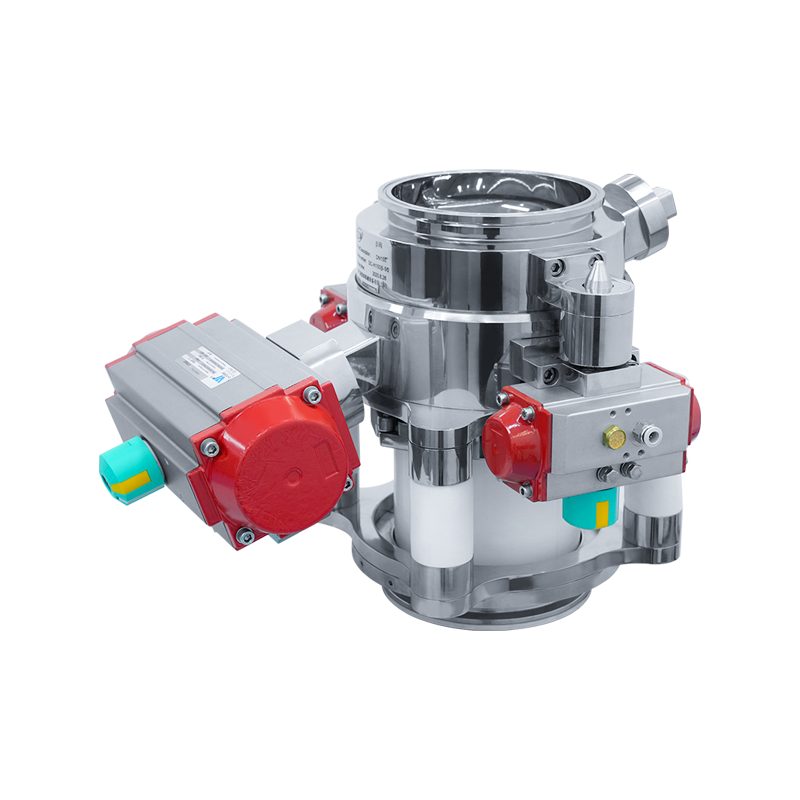

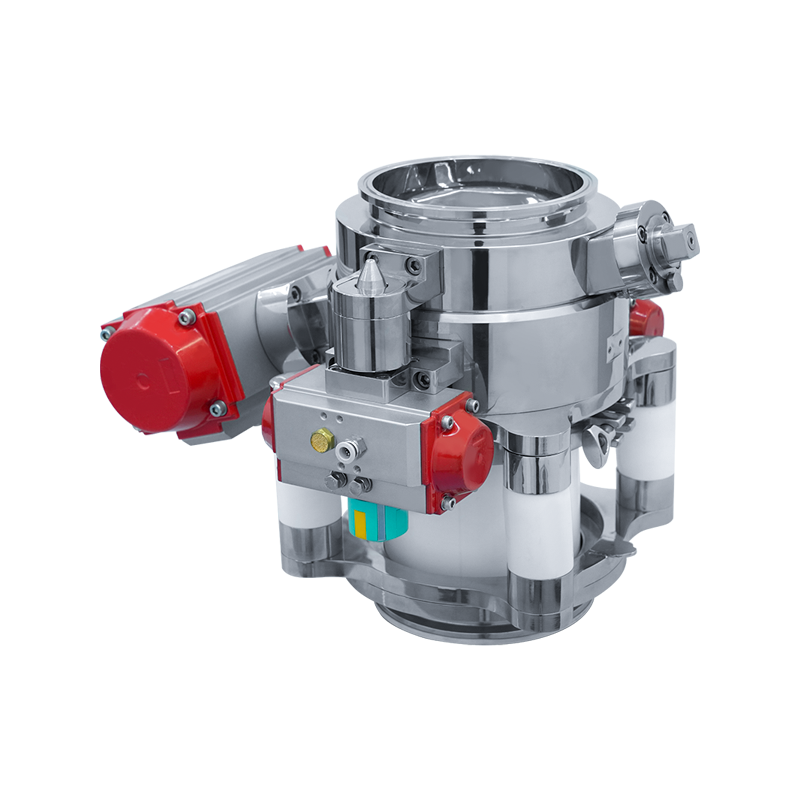

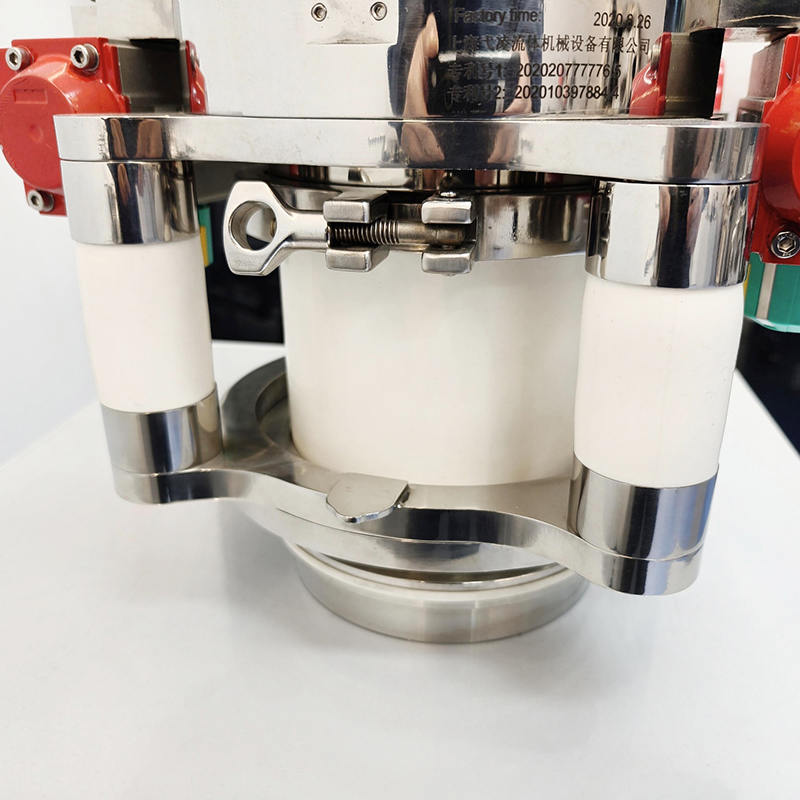

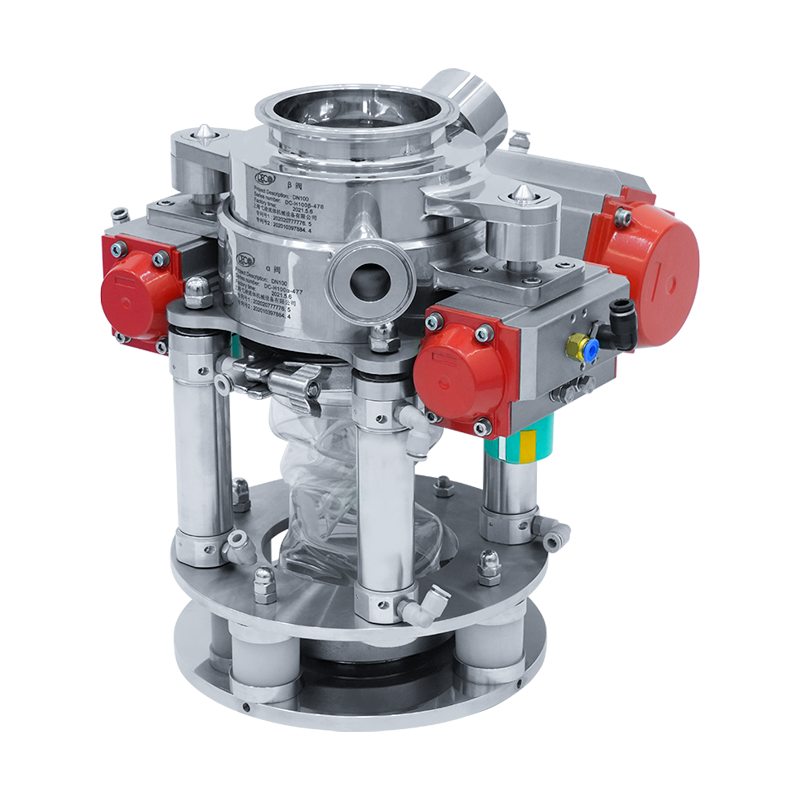

The lifting chassis is designed to be directly installed between the process equipment and the active valve, effectively correcting any lateral misalignment and providing vertical cushioning force during docking. This eliminates the need for additional lifting devices. The system utilizes a pneumatic actuator to control the lifting and docking locking functions, ensuring smooth and precise operation. The integrated guide pins and sleeves guarantee that, once the active component is disengaged from the passive component, it automatically returns to its centered, fixed position. This design enhances operational efficiency, reduces manual labor, and ensures reliability during the docking process. With its intuitive, easy-to-understand mechanism, the lifting chassis offers a logical and streamlined solution for industrial applications, ensuring optimal performance and safety.
