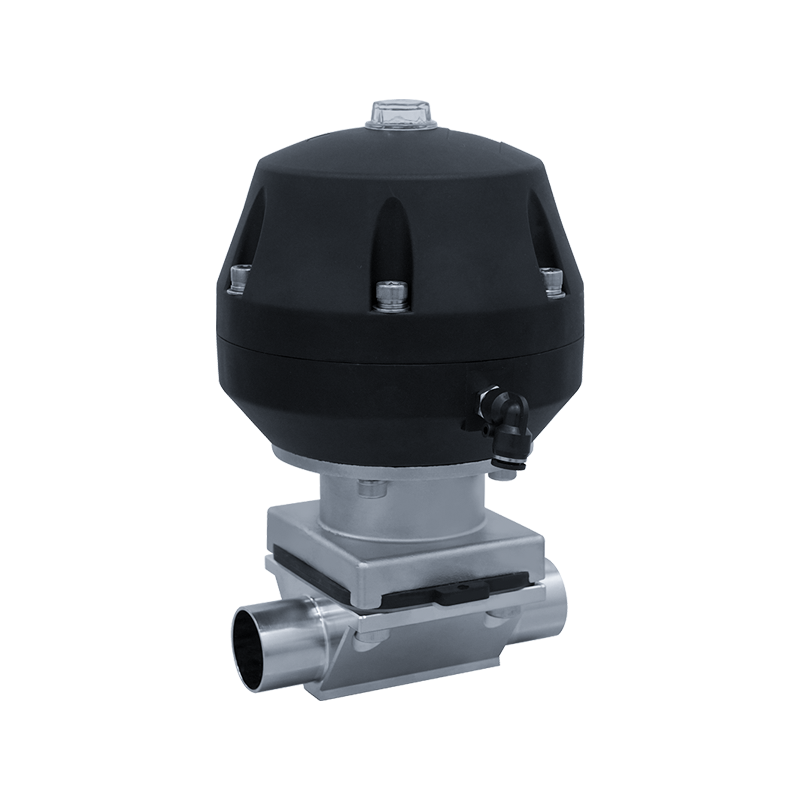

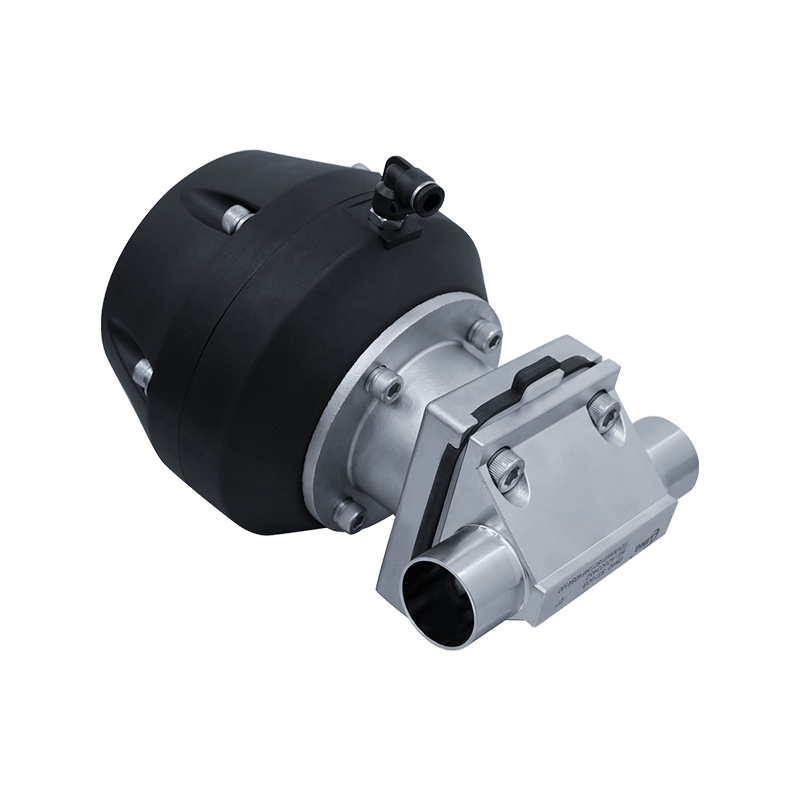

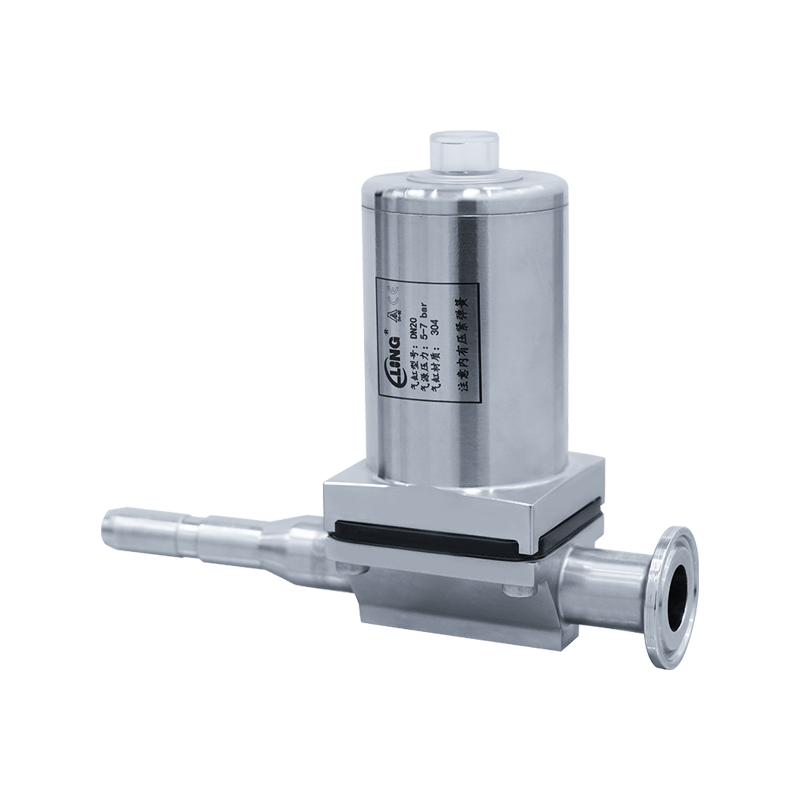

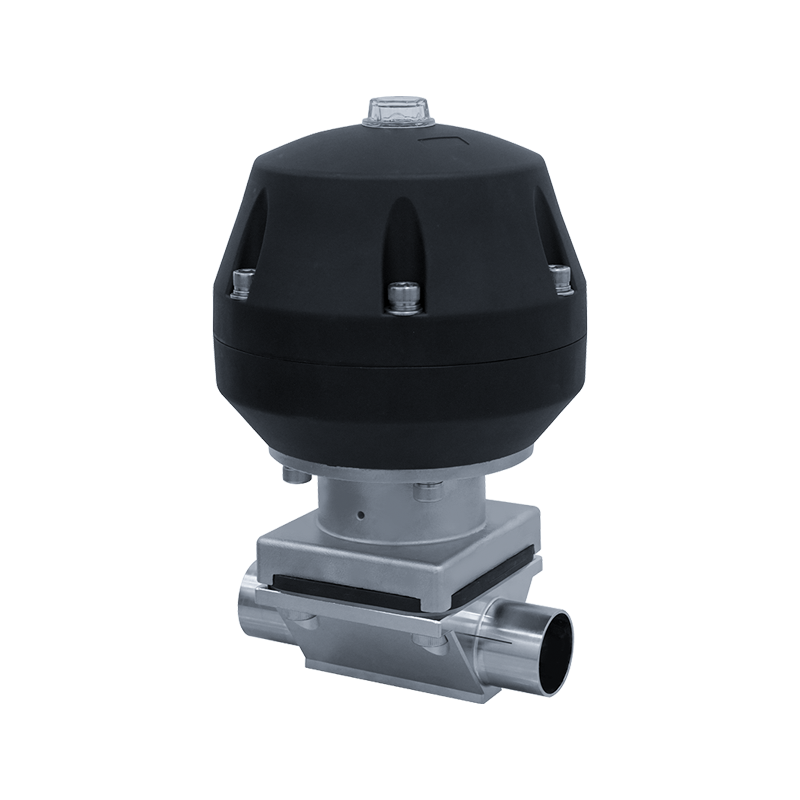

Pneumatic Diaphragm Valve

Proven, high-performance, double-diaphragm forged diaphragm valves for demanding aseptic processes.

Eling has a wide range of diaphragm valves in different configurations and materials, which can be customized to meet the needs of the application-free process or to customize your own diaphragm valve. If you have specific needs, you can get in touch with us in time:

Applications:

Aseptic diaphragm valves are primarily used in aseptic applications in the pharmaceutical, food, and biotechnology industries. They are suitable for ultrapure water (water for injection), ultra-high purity chemicals, and intermediate and final products in the pharmaceutical and biotechnology industries, food processing, and chemical industries.

Sealed design and aseptic diaphragm technology ensure high quality, contamination-free  Save time and money with compact, lightweight, easy-to-install bi-directional valves and custom manifolds  Use specialized valves to improve performance, minimize dead space, and maximize drainage and cleaning  Improve performance and reliability while reducing downtime by optimizing valves and using high-quality, durable materials.

Compact design, space-saving

OEM customization and flexible design

• Reduce dead corners

• Fewer connection points and welds

• Integrate multiple functions in the smallest space possible

• Sealing and isolation between the medium and the actuator

Technical specifications

• Medium temperature: -10 to 100 ° C

• Sterilization temperature: up to 150 ℃

• Environmental temperature: 0 to 60 ℃

• Work pressure: 0 to 10 bar

• Nominal size: DN 4 to 150

• Valve body configuration: multi-port valve body | tank valve body

• Connection type: Welding | Clamp

• Connection standard: ASME BPE DIN can also be customized

• Valve body material: 1.4435 (316L), block material Hastelloy, 904L, 22052504, etc

• Diaphragm material: EPDM | TFM/EPDM

• Compliance: USP | 3A | FDA |

Drive mode: Pneumatic

Initial state: normally open, normally closed
