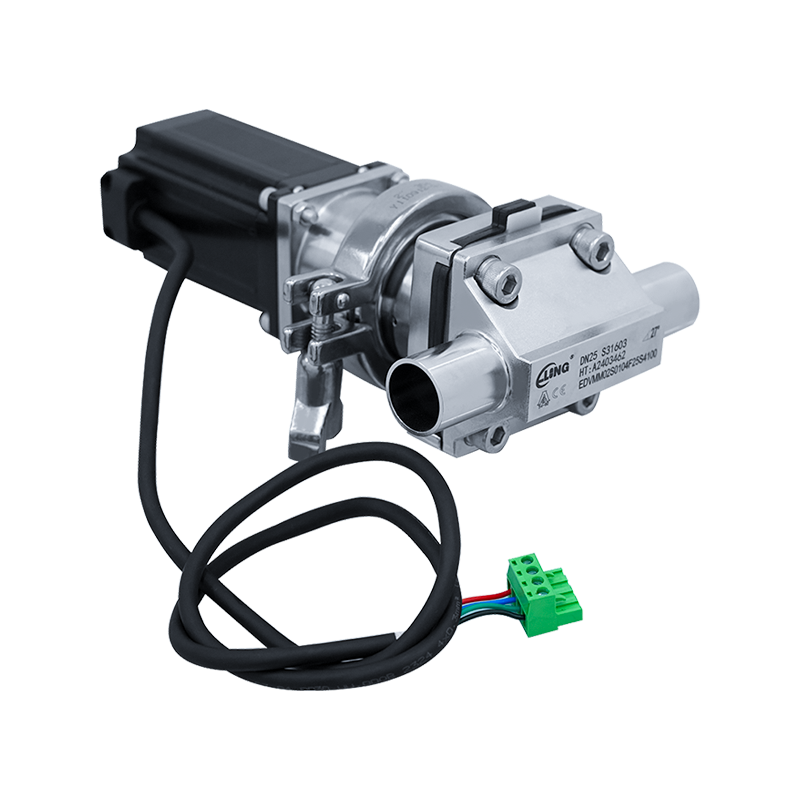

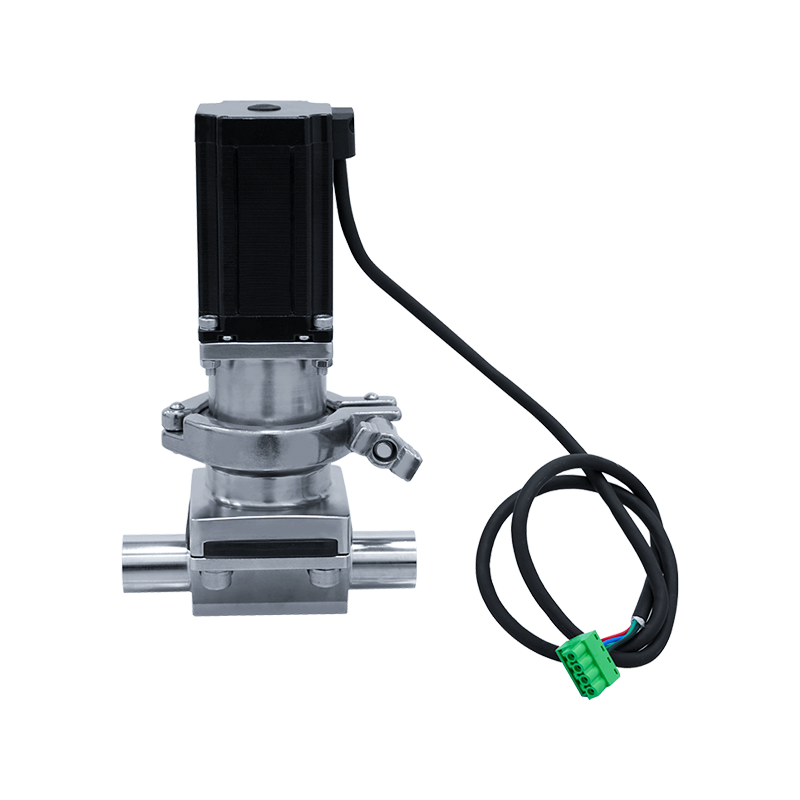

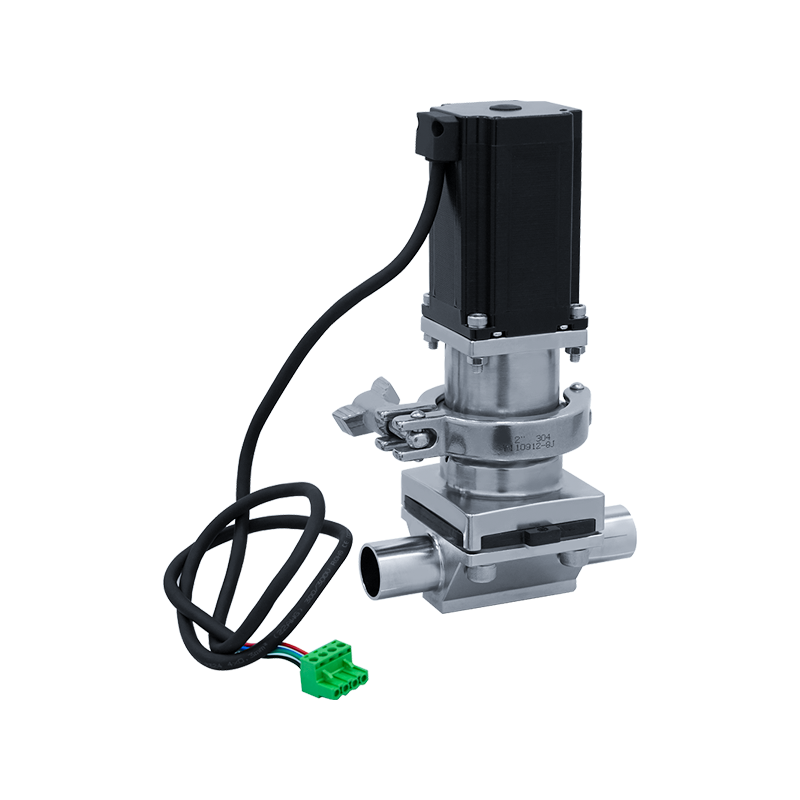

Electric Diaphragm Valve

Proven, high-performance, double-diaphragm forged diaphragm valves for demanding aseptic processes.

Eling has a wide range of diaphragm valves in different configurations and materials, which can be customized to meet the needs of the application-free process, or to customize your own diaphragm valve. If you have specific needs, you can get in touch with us in time:

Applications:

Aseptic diaphragm valves are primarily used in aseptic applications in the pharmaceutical, food, and biotechnology industries. They are suitable for ultrapure water (water for injection), ultra-high purity chemicals, intermediate and final products in the pharmaceutical and biotechnology industries, food processing and chemical industries.

The sealing design and sterile diaphragm technology ensure that the product is of high quality and free of contamination.

Save time and money with compact, lightweight, easy-to-install bi-directional valves and custom manifolds.

Use specialized valves to improve performance, minimize dead space, and maximize drainage and cleaning capabilities.

Improve performance and reliability while reducing downtime by optimizing valves and using high-quality, durable materials.

Excellent drainage properties to reduce dead space, and the inner surface is mechanically and/or electropolished to Ra 0.4μm • CIP/SIP capable and sterilizable.

Compact design, space-saving

OEM customization and flexible design

• Reduce dead corners • Fewer connection points and welds

• Integrate multiple functions in the smallest space possible

• Sealing and isolation between the medium and the actuator

Technical specifications

• Medium temperature: -10 to 100 ° C

• Sterilization temperature: up to 150 ℃

• Environmental temperature: 0 to 60 ℃

• Work pressure: 0 to 10 bar

• Nominal size: DN 4 to 150

• Valve body configuration: multi-port valve body | tank valve body

• Connection type: Welding | Clamp

• Connection standard: ASME BPE DIN can also be customized

• Valve body material: 1.4435 (316L), block material Hastelloy, 904L, 22052504, etc

• Diaphragm material: EPDM | TFM/EPDM

• Compliance: USP | 3A | FDA |

Drive mode: Electric 24V

Initial state: normally open, normally closed
